JIABEIAD is a professional manufacturer and supplier of ultra thin LED light boxes with 13 years of production experience. Factory direct supply with OEM, ODM and custom services available. Monthly production capacity reaches 50,000 units.
Our ultra slim LED light boxes feature acrylic light guide panels, premium aluminum alloy frames, SMD4014 LED strips, and tempered glass for bright, uniform illumination. Available in 10–14mm thickness, they are ideal for retail stores, shopping malls, restaurants, exhibitions, and commercial advertising displays.
All LED light boxes are certified by CE, RoHS, REACH, UKCA, and UL standards.
JIABEIAD Ultra-Thin Light Box
Feature
Ultra thin design

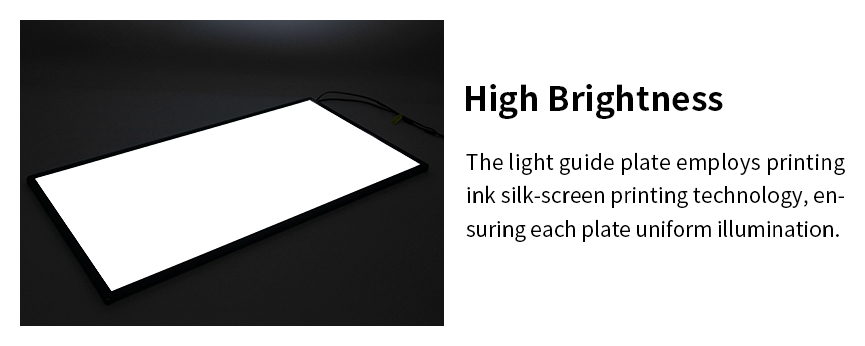

High brightness
Uniform illumination with no dark spots
10-14mm thickness for choice
Custom size and frame color
Aluminum alloy frame
Acrylic light guide panel
2-3mm Tempered Glass
Product Specification
| Light Type | Edge-lit LED with LGP | Frame Color | Black, Silver, White and Custom |
| Max Size(W×H) | 1800×750mm | Thickness | 10-14mm |
| Material | Aluminum alloy+Tempered glass | CCT | 8000K-10000K |
| Certification | CE, ROSH, UL and UKCA | Shape | Square |
| LED Clips | SMD4014 | Brand | JIABEIAD |
| Warranty | 2 years | Type | Advertising light box |
| Wroking Lifespan | 50000 Hours | Change Graphics | Pull out Design |
| Installation | Wall-mount, Desktop, Metal shelf | Voltage | 12V/24V |

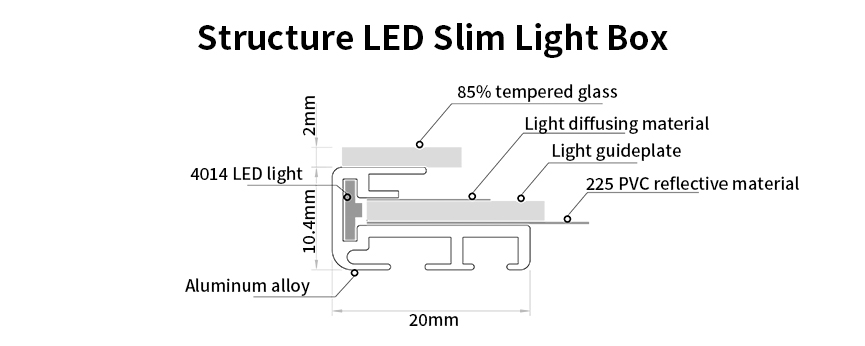

Lightbox Structure
Material: Premium aluminum alloy with an ultra-thin frame design. The slide in design facilitates easy replacement of graphics.
Graphic effects: Utilising 225PVC material for poster printing, ensuring both colour accuracy and long-lasting durability.
Light source: Incorporates world-leading high brightness edge-lit LEDs, delivering superior luminosity compared to conventional market standards.
LGP Panel: Constructed from virgin optical-grade acrylic, employing advanced ink screen printing or the hot pressing technology to significantly enhance brightness unifommity over conventional methods.
Lightbox Advantages
Slide in frame design for easy poster replacement.

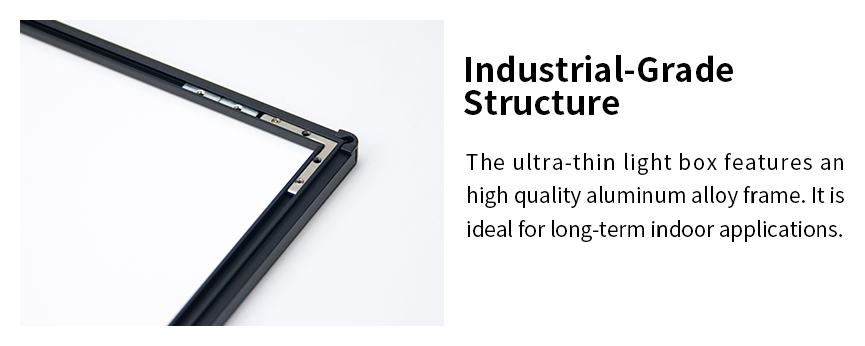

Premium aluminum alloy frame with acrylic panel provides excellent protection.
Ink screen printing technology ensures uniform and bright LGP(light guide panel).
Advanced UV printing technology delivers vivid and clear images.
Built-in ultra-bright TV-grade edge-lit LEDs with a color rendering index exceeding 80.
Customizable shapes, sizes, and frame colors.
JIABEIAD Ultra-Thin Light Box features an industrial-grade aluminum alloy frame, a high-quality light guide plate (LGP). This combination significantly enhances brightness uniformity, delivering performance that surpasses traditional light boxes. Built with excep-tional durability and stability, it comes with a 3-year warranty and is ideal for long-term indoor applications. The slide-in design allows for quick and effortless poster replacement.

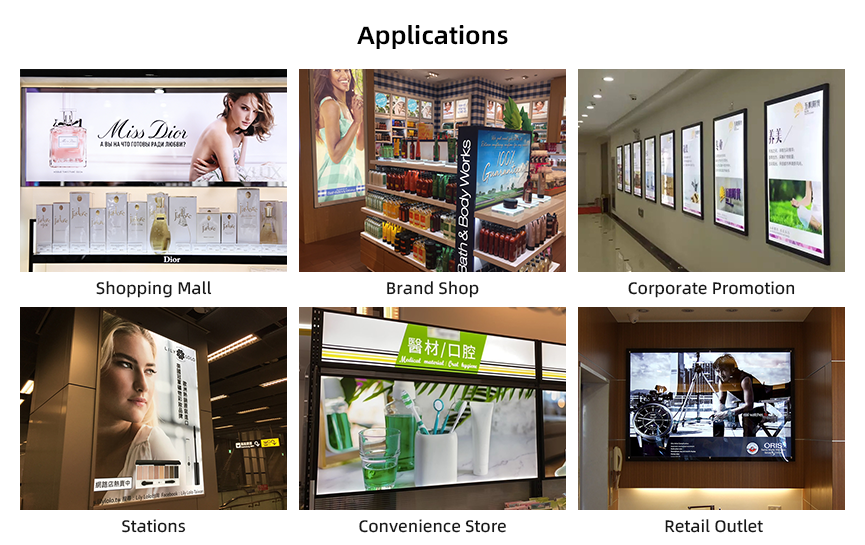

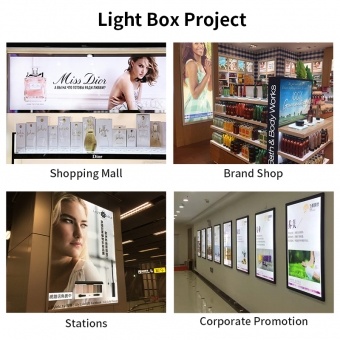

Applications
Our ultra thin LED light box is suitable for shops, restaurants, cinemas, hotels, bars, cafes, exhibitions, airports, train stations, schools, gyms, universities, banks.
